中煤机械  2JP30耙矿绞车

china coal scraper winch

耙矿绞车主要用于金属矿及其它矿场的坑内或露天做矿石搬运及充填工作。

中煤品质 值得信赖

2JP30耙矿绞车 introduction 产品介绍

Product introduction
大型机械进不去,人工太费力怎么办?
2JP30耙矿绞车 2JP30耙矿绞车 2JP30耙矿绞车

2JP30耙矿绞车主要用于金属矿及其它矿场的坑内或露天做矿石搬运及充填工作。主要用于水平耙运,也可用于倾角不大的斜坡耙运,不能作为提升设备。司机可以在绞车旁用手操纵,也可以离绞车数米以至数十米处用按钮实行距离操纵。

Scraper winches are mainly used for ore handling and filling in pits or in open pits in metal mines and other mines. It is mainly used for horizontal harrow, and can also be used for rake with little dip angle. It can not be used as lifting equipment. The driver can be manipulated by hand in the winch side, can also leave a few meters to tens of meters of the winch to implement distance control button.

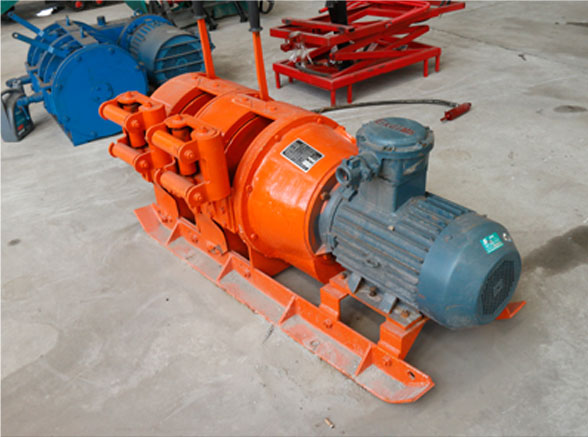

2JP30耙矿绞车

china coal scraper winch

30kw耙矿绞车主要用于金属矿及其它矿场的坑内或露天做矿
石搬运及充填工作。

2JP30耙矿绞车由缠绕在卷筒上的钢丝绳牵引耙斗作往返运动来耙运物料。 30kw耙矿绞车由绞车,耙斗,滑轮三大主要部分组成

The scraper winch is driven by a wire rope wound around the reel to move the material from side to side for hauling. The scraper winch consists of three major parts, namely, a winch, a scraper bucket and a pulley 2JP30耙矿绞车

2JP30耙矿绞车 composition 产品构成

Product composition

电动机
Motor

01

电动机是隔爆型三相异步电动机,是全封闭、自扇冷、鼠笼式、隔爆型三相异步电动机的基本系列。且具有性能优良,使用安全可靠,振动噪比同类产品低的特点,符合环保要求。适用于石油、化工、矿业、冶金、电力等行业有爆炸性气体混合物存在的场所。是理想的动力设备。

The motor is a flame-proof three-phase asynchronous motor, and it is the basic series of full closed, self fan cooled, squirrel candflame-proof three-phase asynchronous motor. The utility model has the advantages of good performance, safe and reliable use, low vibration noise ratio and similar products, and meets the requirements of environmental protection. The utility model is suitable for the places where explosive gas mixture exists in the fields of petroleum, chemical, mining, metallurgy, power and other industries. It is an ideal power plant.
电动机防爆标志代表的意义: 标志(防爆) 电气设备防爆型式(隔爆型) 设备保护级别(Gb) 温度组别(T4) 电气设备类别级别(II类B级)

减速装置
Reducer

02

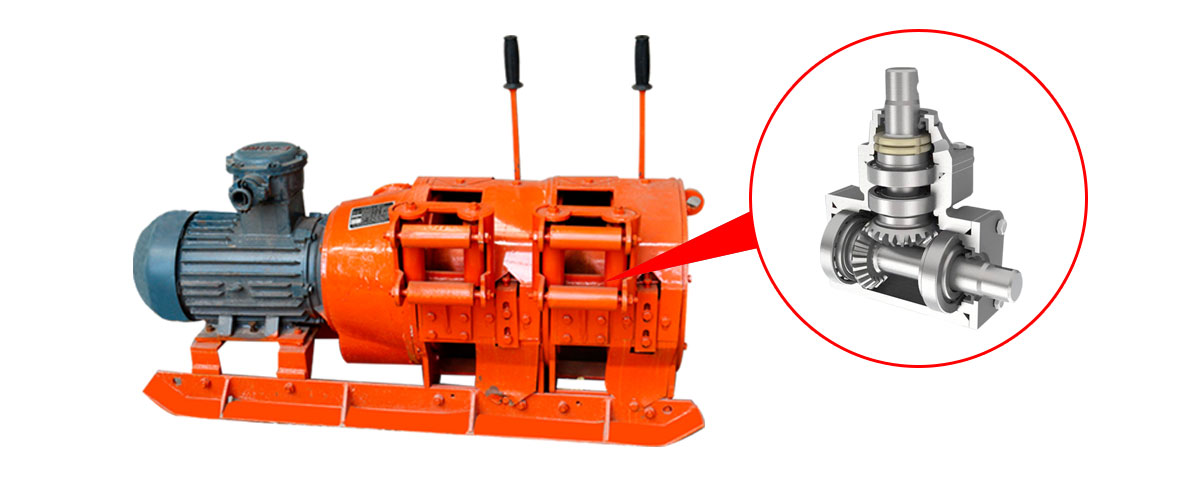

矿用绞车减速器全是人字齿结构,能够使转动过程更平衡,也提高了机器的运输能力和稳定性!另外也具有噪音小,绞车减速机,抽油减速机 JSZ型双力线中心驱动减速器是在使高速轴、低速轴在同一直线上,从而使主电机、减速器、主轴装置呈“一”字布局,结构紧凑减小机房面积,安装、维修方便。减速器为人字齿结构,它除了具有斜齿轮的特点外,还能自行平衡转动过程中产生的轴向力。进一步提高了承载能力和平稳性。中间齿轮采用弹性齿轮,噪音与振动小、抗冲击能力强。

he mining winch reducer is all herringbone structure, can make the rotation process more balanced, and also improve the transport capacity and stability of the machine! There is also a small noise, hoist reducer, pumping speed reducer of JSZ type double line drive reducer is in the center of the high speed shaft and low speed shaft in the same line, so that the main motor, speed reducer, main shaft device of a "one" word layout, compact structure and reduced room area, convenient installation and maintenance. Reducer is a herringbone gear structure. Besides the characteristics of helical gears, it can also balance the axial forces in the course of rotation. Further improve the carrying capacity and stability. The middle gear adopts an elastic gear with little noise and vibration and strong shock resistance.
2JP30耙矿绞车

三筒绞车
Three drum winch

03

三筒绞车有一个主卷筒(装在中间),二个副卷筒(装在左边和右边),三筒绞车也可以装二个主卷筒(装在右侧和中间),一个副卷筒(装在左侧),每一个卷筒都相应有一个操纵装置和一个钢绳导向装置。

Three drum winch has a main drum (installed in the middle), two side drum (installed on the left and right side), three drum winch can also be installed two main drum (mounted on the right side and the middle), a pair of drums (installed on the left side), each have a corresponding control drum device and a rope guiding device.
2JP30耙矿绞车 2JP30耙矿绞车

2JP30耙矿绞车 installation 的安装

winch installation

由于耙矿绞车现场使用中搬迁频繁,因此一般情况下多不浇灌混凝土基础。实践证明,临时性安装质量好坏与否,将直接影响绞车的使用效率与寿命。对此,使用部门决不能掉以轻心。目前常用的临时性安装方法,归纳有下列几种,其一,当采场顶板较低时,用木质支柱固定绞车简单易行;其二,当采场顶板较高时,仍然用木质支柱,虽然是欠安全的。为此,可采用钢丝绳拉紧绞车底座后部的办法固定它。但两种方法均有不足。前者因受顶板高度的限制,使用有局限性。

而后者有两点不易克服的毛病:

a、如果绞车前方矿物堆积较高,或导向滑轮位置偏高时,使用中绞车会产生跳动而加害于设备。

b。底座易被钢丝绳拉坏。基于上诉原因,可考虑采用螺杆支柱固定法。

2JP30耙矿绞车

2JP30耙矿绞车 parameter 参数

Product parameter
电机功率:30KW 主绳平均拉力:28KN
容绳量:85m 钢丝绳直径:16m
卷筒直径:1600mm 外形尺寸:1650*820*700mm
